JH -800/110 Automatic PS PP Extruder Line

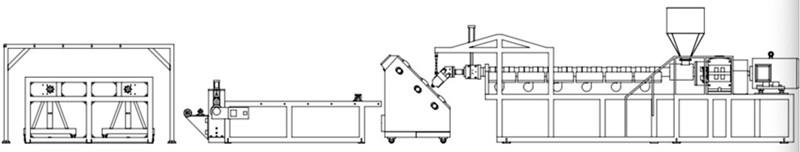

The image is for reference only. Please subject to actual machine!
Product Description:
We adopt advanced international technology and make considerable innovations on design, manufacturing and accessories for Automatic PS PP Extruder Line. The machine is mainly used to produce two layers or three layers plastic sheet of PP, PS and PE. Then the sheet can be taken to produce such as disposable cups, jelly cups, plastic packing containers, file and so on. It is mainly composed of extrusion system, transmission system, and heating and cooling system.
It usually uses electric heating, which is divided into resistance heating and induction heating. The heating plate is installed in the body, neck, and head. The heating device externally heats the plastic in the cylinder to make it warm up to reach the temperature required for the process operation. The Automatic PS PP Extruder Line comes with high efficiency, delicate design, durability, low failure rate, simple operation as well as high cost effective, and is highly praised by our customers worldwide.
TECHNICAL SPEXIFICATION:
I．OUTLINE
1. Usage condition | Power | 380V/3P/50Hz |
Water | 10 ℃-12℃,15m3/h or 20 ℃-25℃,30m3/h | |
2. Suitable Material | PP. PS. PE | |
3. Sheet Specification | L=700-800mm, δ=0.25-2.5mm | |
4. Max. Capacity | 200-250kg/h | |
5. Total Power | About 200kw | |
6. Complete Dimension | 15m*2m*2.2m | |
7. Total Weight | About 9000 kgs | |
II．EQUIPMENT LIST
1. Screw of Extruder |
|
2. Screen Changer |
1 unit |
3. Die Head |
1 unit |
4. Gear Pump |
1 unit |
5. Three Roller Calendar |
1 unit |
6. Cooling Bracket |
1 unit |
7. Haul-off |
1 unit |
8. Winder |
1 unit |
9. Electric Control System |
1 set |
10. Material Loading System |
|
III．DETAILED TECHNICAL SPECIFICATION:
1.Screw extruder | Motor | 110kw/6-stage Siemens |
Inverter | Delta 110kw | |
Nitride layer thickness | 0.5-0.8mm | |
Gear box output | 200r/min | |
Gear box to motor | Direct connection | |
Screw diameter | 110mm | |
L/D | 32:1 | |
Screw Max. speed | 300r/min | |
Screw mandrel material | 40CrNiMoA | |
Screw material | 38CrMnAIA | |
Screw hardness | HV950-1050 | |
Screw roughness | Ra≤1.6um | |
Screw heating power | 30 kw | |
2. Screen changer | Drive type | Hydraulic drive with hydraulic station |
Heating method | Stainless steel heating rods | |
Structure type | Double slide plate automatic change | |
3. Die Head | T-Die structure | Clothes hanger type |
Width | L=800mm | |
Heating zone | 5 zones | |
Heating power | 16kw | |
Die head material | 5CrNimo | |
4. Three-roller calendar | Calendar type | “45 Degree”Oblique type |
Roller size | Φ450mm | |
Surface roughness | Ra≤0.015um | |
Surface hardness | HRC≥58 | |
Chromium coated thickness | ≥0.1mm | |
Transmission type | Separate drive | |
Gear box | Zhejiang Evergear | |
AC motor | Zhejiang Evergear 2.2kw | |
Gap adjustable method | Hydraulic oil cylinder | |
Bearing of the roller | Japan NSK | |
The frame | One block of solid steel | |
Rotational joint | Flange type | |
With roller temperature controller system | ||
5. Cooling bracket | Bracket length | 5 m |
Roller | Aluminum oxidized, polished. | |
Size | Φ70×1000mm | |
Edge trimming units | 3 knives, adjustable. | |
Edge recycle winding | 1 unit | |
6. Haul off unit | Haul off roller | Up rubber, down steel |
Rubber roller material | Nitrile rubber | |
Roller size | Ф200mm×1000mm | |
Motor | 2.2kw Siemens | |
Gear box | Zhejiang Evergear | |
7. Winder | Working type | Two position rotation |
Drive motor | Oil motor | |
Max. winding diameter | Ф1000mm | |
Winding speed | 0.3-30m/min | |
8. Electric system | Screen touch | Taiwan Weinview |
PLC | Mitsubishi | |
Contractor | Schneider | |
Relay | Schneider | |
Temp. Controller | Japan Omron | |
Breaker | Schneider | |
Air switch | China Chint | |
Buttons & lights | China Chint | |
9.Loading system | Loading capacity | 50-600kg/h |
Work type | Screw type | |
Power | 2.2 kw | |
Ⅳ．Spare parts
1. Screw tool | 1 set |
2. Die head tool | 1 set |
3. Gearbox oil seal | 1 set |
4. Screen changer heater | 4 pcs |
5. Die head heater | 4 pcs |
6. Screw heater | 4 pcs |
7. Temp. Controller | 1 pc |
8. Contractor | 2 pcs |
9. Reply | 2 pcs |
