JH 350 Paper clamshell blister forming machine
Product Description:
This kind of Paper Clamshell Blister Forming Machine is widely used in Hardware, Pharmaceutical, daily chemical, Toy plastic, cosmetic and so on. It adopts positive/negative pressure forming, aircraft hole (optional), cutting, feeding, lower paper card, heat sealing, finished product conveying, etc., with simple structure and convenient operation. It uses imported frequency conversion speed control, color touch screen (human-machine interface) and PLC programmable control system, with high output, low noise, clear and simple operation, high degree of automation as well as more humanized. What’s more, the Paper Clamshell Blister Forming Machine adopts photoelectric control, buzzer alarm when PVC hard film is used up and cardboard is not enough. It can also save a lot of packaging materials by using the roll-up plastic sheet feeding device. It is very popular with our clients around the world because of excellent performance and sophisticated design.
| ITERM | SPECIFICATION | |
MAX Cutting Speed :75mm×100mm×4 | Paper/plastic 10-25times/min | |
Capacity | paper/plastic 15×4×60 blister/Hour | |
Stroke | 30-220mm | |
Max forming area | 340×180mm | |
Max forming depth | Paper/blister 40 mm（special design50mm） | |
Forming, top and bottom heating | 2KW(×2) | |
Rotary servo motor | 0.75KW | |
Hot seal heating power | 3.5KW | |
Power supply and power | 380V 50HZ（480V 50HZ）9KW | |
Mainly motor power | 1.5KW | |
Air flow | ≥0.6m3/min | |
Material | Plastic blister | Diameter 400mm×W350mm× Thickness 0.5mm |
Paper card | 400×220×0.5mm | |
Dimension L*W*H | 3500×1600×1850mm | |
Weight | 1800Kg | |

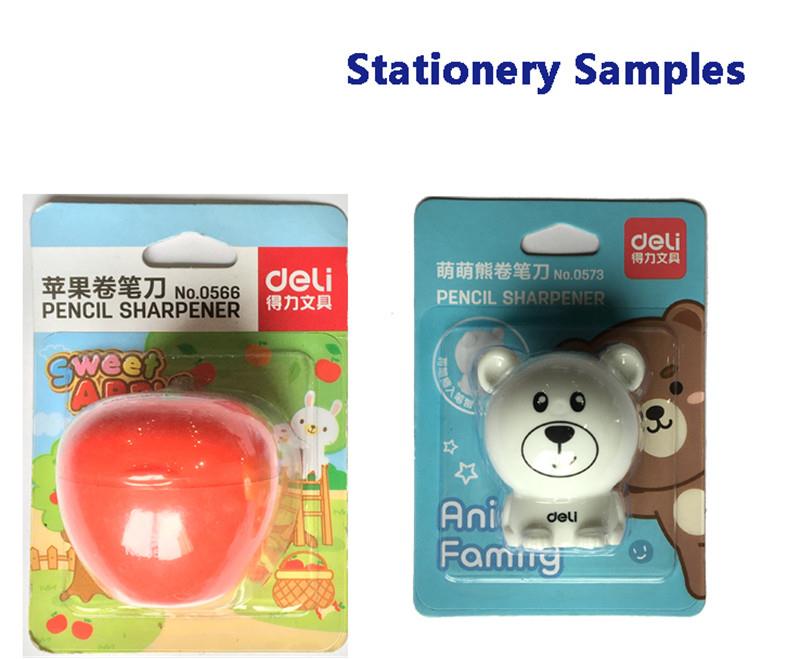

Samples display
